We offer a wide range of wire rope clips that are precision-manufactured to meet the highest standards of reliability and performance. Crafted from malleable iron and galvanized for corrosion resistance, these clips are designed to provide exceptional strength and durability, ensuring that they can withstand even the most demanding conditions. With our competitive pricing and extensive inventory, you can easily find the perfect fit for your wire rope securing needs without breaking the bank.
Material:Malleable Iron
Surface:Zinc plated
Technology:Casting
Size:From 1/8"to 11/2"
Packing:Bag +Pallet
Certification:ISO,CE
Using for:Fixing Wire Rope

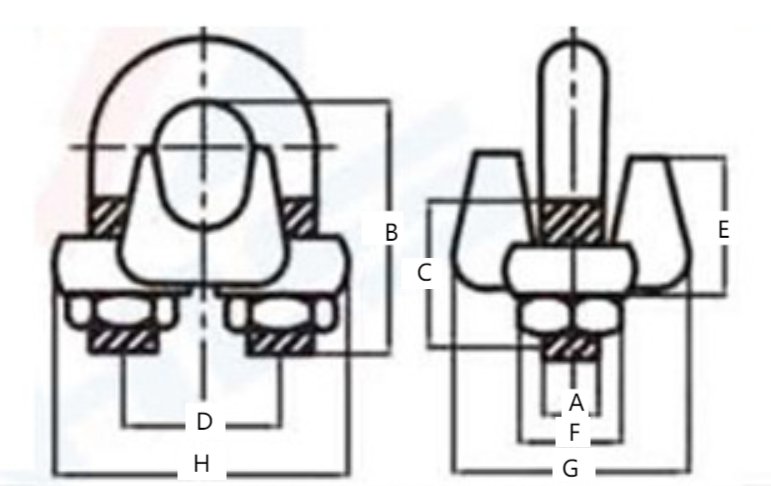

38Min-Max Size | Std.Package Qty. | Weight （kg/100） | G450 Dimensions(in.) | ||||||||
(mm) | (in) | A | B | C | D | E | F | G | H | ||
3-4 | 1/8 | 100 | 2.72 | 5.60 | 18.3 | 11.2 | 11.9 | 10.4 | 9.65 | 20.6 | 23.9 |
5 | 3/16 | 100 | 4.54 | 6.35 | 24.6 | 14.2 | 15.0 | 12.7 | 11.2 | 23.9 | 29.5 |
6-7 | 1/4 | 100 | 8.62 | 7.85 | 26.2 | 12.7 | 19.1 | 16.8 | 14.2 | 30.2 | 36.6 |
8 | 5/16 | 100 | 12.7 | 9.65 | 35.1 | 19.1 | 22.4 | 18.3 | 17.5 | 33.3 | 42.9 |
6-7 | 3/8 | 100 | 21.8 | 11.2 | 38.1 | 19.1 | 25.4 | 23.1 | 19.1 | 41.4 | 49.3 |
11 | 7/16 | 50 | 35.4 | 12.7 | 47.8 | 25.4 | 30.2 | 26.2 | 22.4 | 46.0 | 58.0 |
12-13 | 1/2 | 50 | 36.3 | 12.7 | 47.8 | 25.4 | 30.2 | 28.7 | 22.4 | 48.5 | 58.0 |
14-15 | 9/16 | 50 | 49.4 | 14.2 | 57.0 | 31.8 | 33.3 | 31.0 | 23.9 | 52.5 | 63.5 |
16 | 5/8 | 50 | 49.9 | 14.2 | 60.5 | 31.8 | 33.3 | 34.0 | 23.9 | 52.5 | 63.5 |
18-20 | 3/4 | 25 | 64 | 15.7 | 70.0 | 36.6 | 38.1 | 35.8 | 26.9 | 57.0 | 72.0 |
22 | 7/8 | 25 | 96 | 19.1 | 79.0 | 41.1 | 44.5 | 40.4 | 31.8 | 62.0 | 80.5 |
24-26 | 1 | 10 | 114 | 19.1 | 89.0 | 46.0 | 47.5 | 45.2 | 31.8 | 67.0 | 88.0 |
28-30 | 1-1/8 | 10 | 128 | 19.1 | 98.5 | 51.0 | 51.0 | 48.5 | 31.8 | 71.5 | 91.0 |
32-34 | 1-1/4 | 10 | 199 | 22.4 | 108 | 54.0 | 59.4 | 55.5 | 36.6 | 79.5 | 105 |
36 | 1-3/8 | 10 | 200 | 22.4 | 118 | 58.5 | 59.4 | 58.5 | 36.6 | 79.5 | 106 |
38 | 1-1/2 | 10 | 247 | 22.5 | 125 | 60.5 | 66.5 | 62.0 | 36.6 | 86.5 | 113 |
41-42 | 1-5/8 | Bulk | 319 | 25.4 | 135 | 66.5 | 70.0 | 67.5 | 41.4 | 92.0 | 121 |
44-46 | 1-3/4 | Bulk | 424 | 28.7 | 146 | 70.0 | 77.5 | 74.5 | 46.0 | 97.0 | 134 |
48-52 | 2 | Bulk | 590 | 31.8 | 164 | 76.0 | 86.0 | 77.0 | 51.0 | 113 | 149 |
56-58 | 2-1/4 | Bulk | 726 | 31.8 | 181 | 81.0 | 98.5 | 81.0 | 51.0 | 114 | 162 |
62-65 | 2-1/2 | Bulk | 862 | 31.8 | 195 | 87.5 | 105 | 93.5 | 51.0 | 119 | 168 |
68-72 | 2-3/4 | Bulk | 1043 | 31.8 | 211 | 90.5 | 111 | 124 | 51.0 | 127 | 175 |
75-78 | 3 | Bulk | 1406 | 38.1 | 233 | 98.5 | 121 | 119 | 60.5 | 149 | 194 |
85-90 | 3-1/2 | Bulk | 1814 | 38.1 | 273 | 114 | 140 | 152 | 60.5 | 157 | 213 |
